The toggle property allows a credential to “toggle” a door between an unlocked and locked state resembling a physical lock and key.

It cannot, however, be used to override an Auto-Unlock nor Auto-Unlock w/ Badge rule. Toggle lock can only reset a toggle unlock.

Adding Toggle Credential Special Property

  1. Click the Users tab on the left side navigation:
  2. Click next to the user for which you want to add a toggle credential
  3. Select Manage Credentials
  4. Click next to the credential for which you will be enabling the toggle property

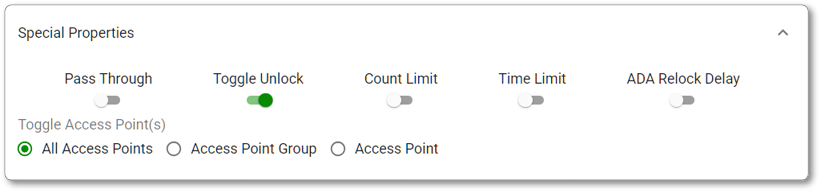

  5. Click next to Special Properties then select the slider for Toggle Credential to enable the toggle property
  6. Choose which access point(s) or access point group(s) the toggle credential should work with
  7. Click

Re-Lock Time

  1. In order to ensure your doors are not left in a toggle unlock state accidentally, set a Re-lock time

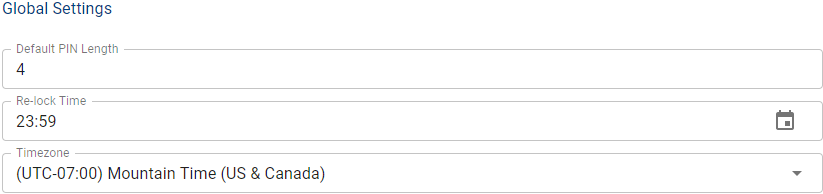

  2. Click the Settings tab on the left side navigation
  3. Click on the Global Settings tab
  4. Enter the desired re-lock time into the Re-lock Time box. If the door is in an unlocked state at this time, the door will re-lock automatically
    • By default this is set to 23:59
  5. Click and then enter your password to confirm
