The Connectivity Test is meant to ensure that your network environment is properly configured and ready to add ISONAS devices. This will save time during set up by limiting network troubleshooting and narrowing potential networking configuration changes that may prevent connectivity to Pure Access.

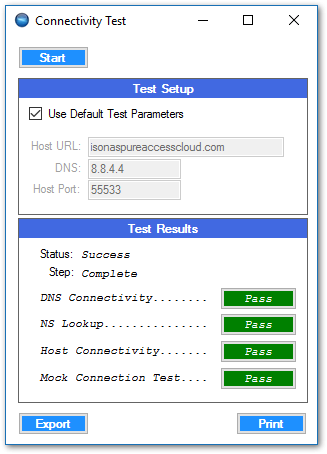

The connectivity test will run a series of four tests:

  • Test 1: Pings the specified DNS server (Google DNS by default) 4 times and averages the response time to confirm DNS connectivity
  • Test 2: Finds routing info for ISONAS Pure Access Cloud using the specified DNS server (Google DNS by default)
  • Test 3: Tests connectivity to ISONAS Pure Access Cloud by pinging the environment 4 times and averaging the response times.
  • Test 4: Simulates a device connection by ensuring a simulated ISONAS device can make a connection to Pure Access through port 55533.

The results of the test can be clicked on to display more information. Alternatively, one can export or print the results of the test for further review.
